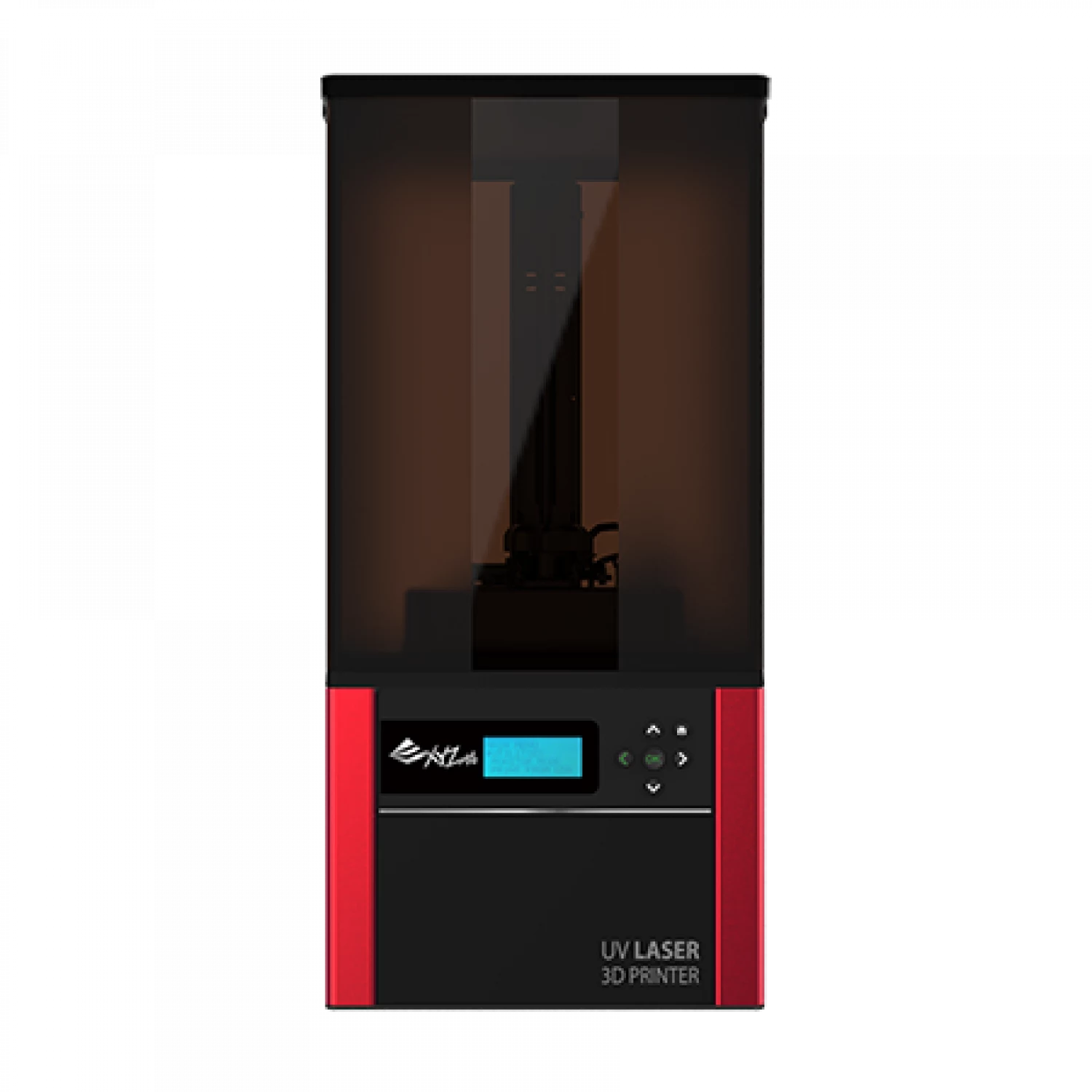

Nobel 1.0A monitors the printing process and displays the remaining amount of resin at any time. The printer has an auto-filling resin system to ensure that users have the proper amount of resin before every print.
? XYZware_Nobel software has improved slicing speeds by 20? and is able to automatically analyze the features of the model and add support structures where necessary
Product Specification | |
Printing technologies | SL (Stereolithography Apparatus) |
Dimensions | 11 x 11 x 23 inches (280 x 345 x 590 mm) |
Weight | 21.16 lbs/9.6 kg (including 500g of photopolymer resin) |
Printing specifications Maximum printing area (WxDxH)* | 5 x 5 x 7.87 inches (128 x 128 x 200 mm) |
For the objects with dimension of cross section larger than 100mm x 100mm, please consider dividing them in multiple parts that can be assembled after printing. | |
Resolution X/Y axis: | 0.13mm (130 Microns) |
Layer thickness: | 0.025mm (25 Microns; maximum allowed height: 50mm) |
0.05mm (50 Microns; maximum allowed height: 100mm) | |
0.1 mm (100 Microns; maximum allowed height: 200mm) | |
Display screen | 2.6” FSTN LCM |
Connectivity | USB cables, USB drive |
Print Material | Photopolymer resin |
Software | XYZware_Nobel |
Software | |
File format | .stl and XYZ (.3ws, .3wn) format |
Operating System | Windows 7 or later (PC) |
Mac OS X 10.8, 10.9, 10.10 (Mac) | |
Operating conditions | 18-28?/64.4-82.4? |
Temperature: | |
Operating temperature may be different for functional resins. If a different operating temperature is printed on the label on the resin bottle, please adhere to recommended conditions on the label. ) | |
Humidity: | 40-80? RH (no condensation) |
